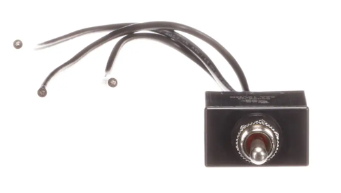

Toggle Switch Door Control ARBOC

Features and Benefits

Application sealed through actuator O-Ring and epoxy sealed connection interface with Silver contacts for corrosion resistance.

Specifications Overview

Voltage Rating: 25A @ 12V DC 15A @ 24V DC

Circuitry: SPST Mom. On-Off-Mom. On

Housing: Black Plastic

Operating Temperature: -40°C to 85°C

Mounting: Nickel Plated Brass Face Nut through 15/32 (11.90mm) Panel Hole

Ingress Protection: IP67

Actuator: Standard handle: 11/16” (17.46mm) long

Termination: 3 blunt-cut 14AWG leads
